Running and Movement Biomechanics

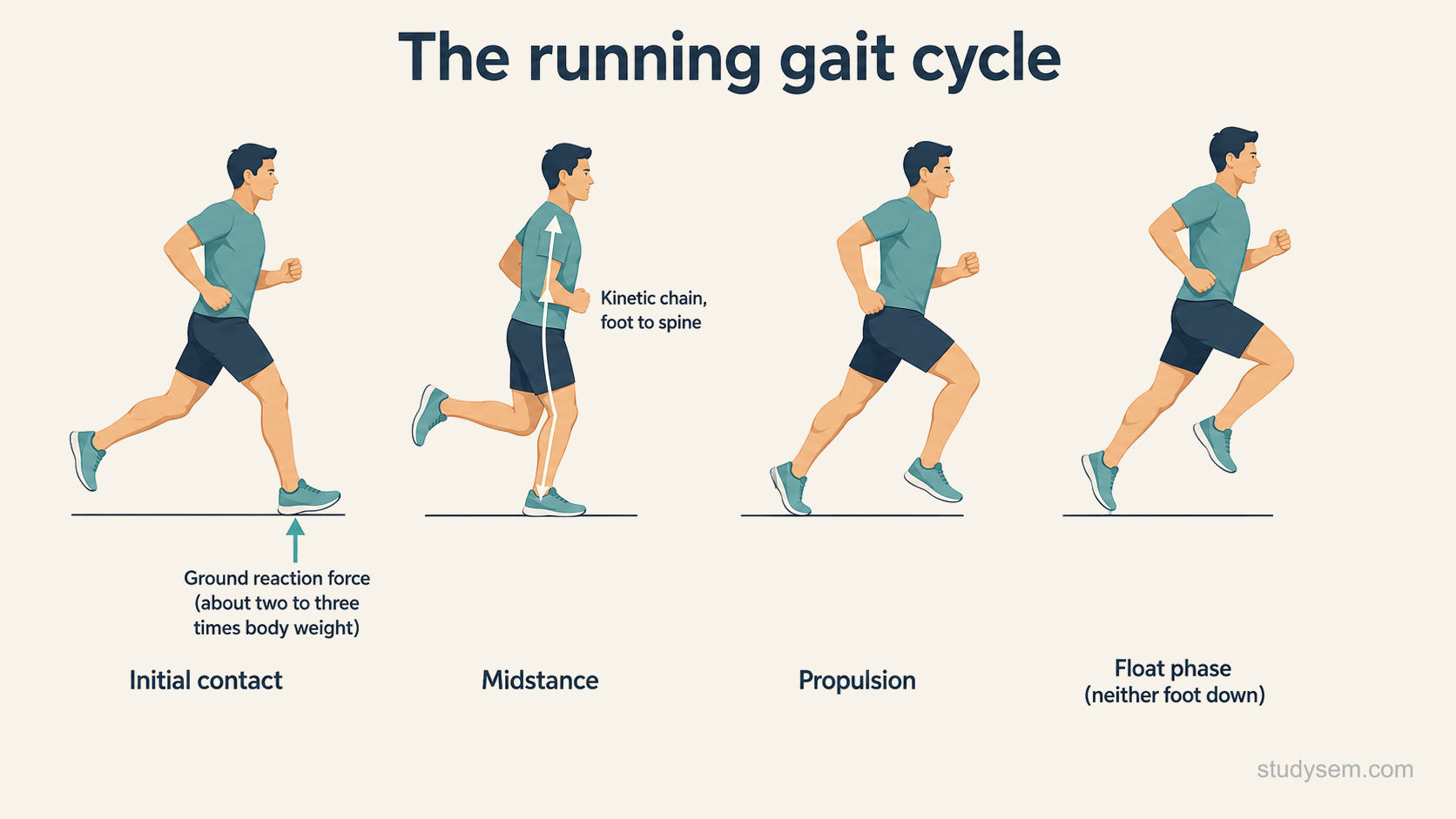

The running cycle divides into stance, when the foot is on the ground, and swing, when it is not. Unlike walking there is no period of double support; instead there is a float phase when neither foot is down, and each landing must absorb a ground reaction force of roughly two to three times body weight. Stance moves through initial contact, midstance and propulsion, and the foot acts first as a shock absorber, then as a rigid lever for push-off, aided by the windlass mechanism as the toes extend. Force is transmitted up a kinetic chain from foot to ankle, knee, hip, pelvis and spine, so control at one level affects load at another, and weaker proximal control at the hip and pelvis can raise load at the knee and shin. Several variables shape that load. Cadence, the number of steps per minute, is typically 150 to 180 and highly modifiable; a longer stride with the foot landing well ahead of the body, called overstriding, raises braking and impact forces. Foot strike, vertical oscillation, ground contact time and pronation all contribute. When movement patterns concentrate force, for example excessive hip adduction and internal rotation producing dynamic knee valgus, or a dropped opposite hip during single-leg stance, specific tissues may be repeatedly overloaded, though the evidence tying any single pattern to injury is mixed.

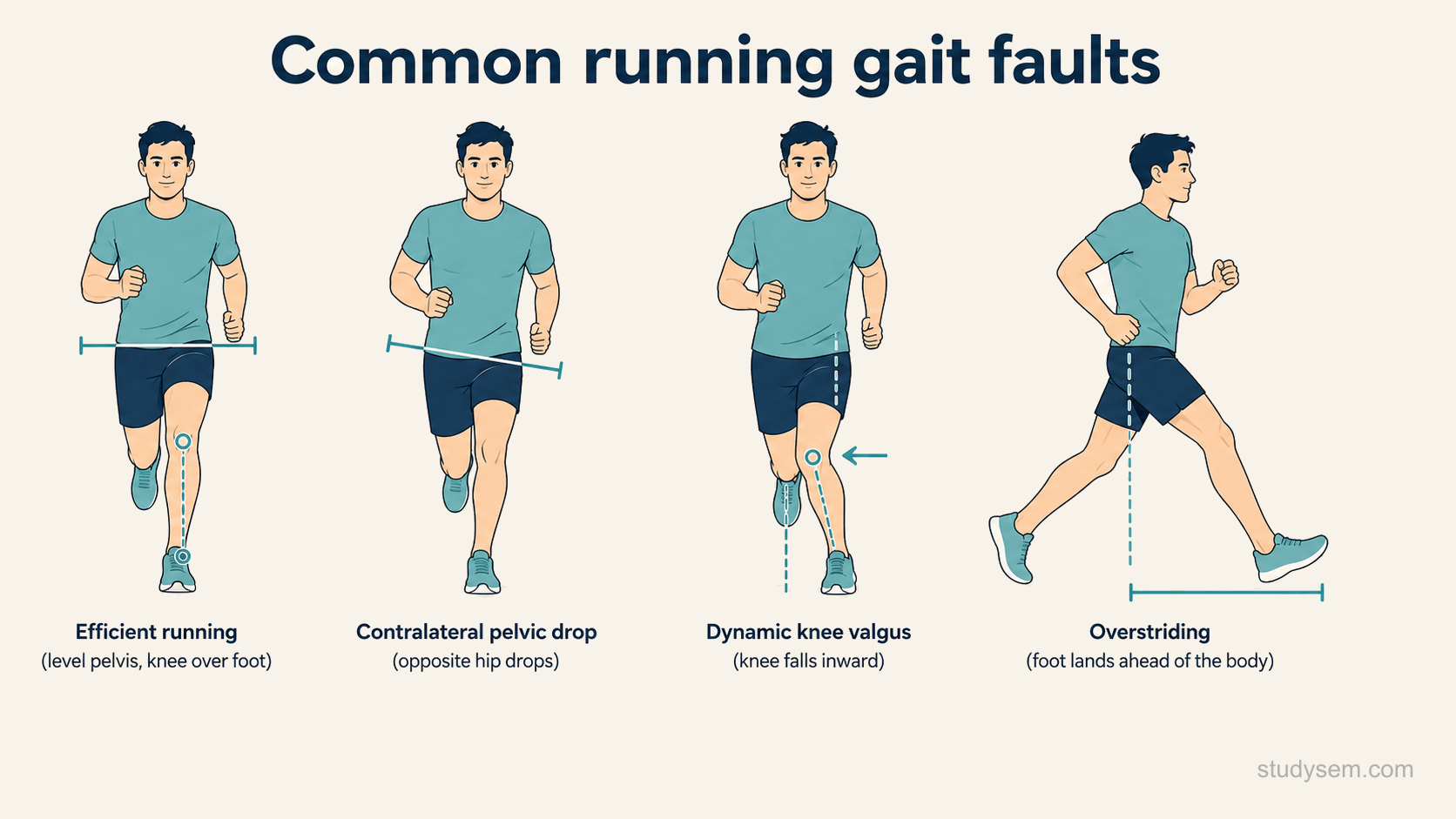

Running overuse injuries present with load-related pain that builds over weeks, usually after a change in training volume, intensity, surface or footwear. Several link to recognisable movement patterns. Patellofemoral pain, around or behind the kneecap, is associated with dynamic valgus, weak hip abductors and overstriding. Iliotibial band syndrome, with lateral knee pain, relates to hip control and pelvic drop. Shin pain from medial tibial stress syndrome or tibial bone stress injury is linked to high loading rates and overstriding, and Achilles and plantar heel pain relate to calf function, foot strike and load. A dropped opposite hip during stance, contralateral pelvic drop, is more common in injured than uninjured runners across several of these injuries. These links come largely from comparing injured with uninjured runners; prospective evidence that any pattern predicts future injury is inconsistent, so movement findings are treated as possible contributors alongside symptoms and loading history rather than proven causes.

Assessment is clinical and observational rather than reliant on tests. The history covers training load and recent changes, footwear, terrain and previous injury. Examination looks at strength and control, particularly the hip and calf, and functional tests such as a single-leg squat reveal dynamic valgus and pelvic drop. Observational gait analysis, ideally filmed on a treadmill at a high frame rate and reviewed frame by frame, is the practical core: the clinician looks at cadence, overstriding, contralateral pelvic drop, trunk lean, and knee and foot position at contact. Three-dimensional motion capture and force plates give precise data but are for specialist or research settings. Imaging has no role in assessing the biomechanics itself. It is used when a structural or bone stress diagnosis is suspected: magnetic resonance imaging (MRI) is the test of choice, since plain radiographs miss early bone stress injury, which matters most at high-risk sites such as the anterior tibial cortex and femoral neck.

Managing biomechanical contributors runs alongside settling the injured tissue and correcting the training load that triggered it. The most studied gait change is increasing cadence: a rise of about five to ten per cent shortens the stride, brings the foot closer to the body and reduces selected loads such as impact, loading rate, overstriding and vertical oscillation. These are biomechanical changes, and the clinical benefit is best supported in patellofemoral pain, while evidence for preventing or treating tibial stress injury is limited. A softer, quieter landing can help, and foot strike is changed only cautiously, since shifting from a rearfoot to a forefoot or midfoot strike increases eccentric load on the calf, Achilles tendon and metatarsals, while shifting the other way loads the patellofemoral joint and anterior shin. Exercise helps too: knee-targeted work, with hip and calf strengthening where appropriate, improves symptoms and builds tissue capacity, though it does not reliably correct valgus or pelvic drop and the mechanism is uncertain. Footwear is matched to the runner, and orthoses help selected presentations, not everyone. A change in training load is an important modifiable contributor, so progressive, sensible progression of volume and intensity matters alongside any gait cue. Podiatry and physiotherapy are close partners.

Return to running is graded and criteria-based rather than fixed to the calendar. Loading is rebuilt progressively, often starting with a walk-run structure, while the strength and movement work continues and any gait changes are embedded until they feel natural at pace. Cadence and technique cues are practised at easy speeds, then carried into faster and longer runs. Throughout, training load is monitored so that volume and intensity climb gradually, since a sudden rise is the common trigger for both the original injury and any recurrence. The aim is a runner who tolerates their target load with control, not simply one who is pain-free at rest.

The same biomechanical thinking applies well beyond running, across the movements that load athletes in other sports, from overhead throwing and serving, which load the shoulder and elbow through a sequenced kinetic chain, to jumping, landing and change of direction, which load the knee. Movement patterns can alter how load is distributed through the kinetic chain, but no single observed fault proves the cause of an injury, and a feature such as dynamic valgus is best seen as one target within multicomponent neuromuscular training rather than a stand-alone diagnosis or a reliable individual predictor of injury. Kicking, rowing, swimming strokes and cycling position each have their own efficient patterns and characteristic overload sites, and the clinician's role is the same as in running: relate the movement to the injury, and target retraining and load rather than chasing a single ideal technique.

Equipment is part of the picture. In running, footwear is matched to the runner and orthoses help selected presentations rather than everyone. In other sports, equipment set-up can matter as much as technique: bicycle set-up, including saddle height and position, can influence comfort, joint position and loading, and racket, bat, oar and footwear choices, along with protective equipment, all interact with how force is applied and absorbed.

Movement is assessed along a spectrum of technology, each level with its own strengths and limits. Observational analysis, ideally filmed on video and reviewed frame by frame, is the practical core in clinic and remains the most widely used tool. Two-dimensional (2D) video gives plane-specific estimates rather than full joint kinematics. Three-dimensional (3D) marker-based optical capture combined with force plates is the laboratory reference method, giving detailed joint kinematics and kinetics, though it remains subject to modelling and measurement error and is confined to specialist and research settings. Markerless video systems are developing quickly, but their accuracy is task- and system-dependent. Wearable inertial measurement units (IMUs) estimate segment motion, while global positioning system (GPS) tracking mainly measures position, speed and external running load rather than detailed joint mechanics. Whatever the tool, findings are interpreted cautiously, as contributors alongside symptoms and loading history rather than proven causes.

• •Increasing running cadence by about five to ten per cent alters selected loads such as impact and loading rate and may help some runners, particularly with patellofemoral pain; evidence for preventing injury or for tibial stress injury is limited.
• •Contralateral pelvic drop is greater in injured than uninjured runners in cross-sectional studies, which shows association with current injury rather than prediction of future injury.
• •A change in training load is an important modifiable contributor, and no single risk factor consistently explains running injury, so load management remains central.
• •Exercise improves symptoms in patellofemoral pain, using knee-targeted work with hip-targeted work where appropriate, although the mechanism is not established.
• •Changes to foot strike or footwear should be introduced cautiously, since abrupt transitions shift load and can cause new injury.

• •Running has no double-support phase and includes a float phase, with ground reaction forces of about two to three times body weight.
• •Cadence is typically 150 to 180 steps per minute and is modifiable; a five to ten per cent increase reduces selected loads.
• •Overstriding raises braking and impact forces; landing closer to the body reduces them.
• •Suspected bone stress injury is imaged with magnetic resonance imaging, since plain radiographs miss early lesions.
• •Contralateral pelvic drop is more common in injured runners, but the evidence is associative, not predictive.
• •A change in training load is an important modifiable contributor; no single factor consistently explains running injury.
