Body Morphology and Anthropometry

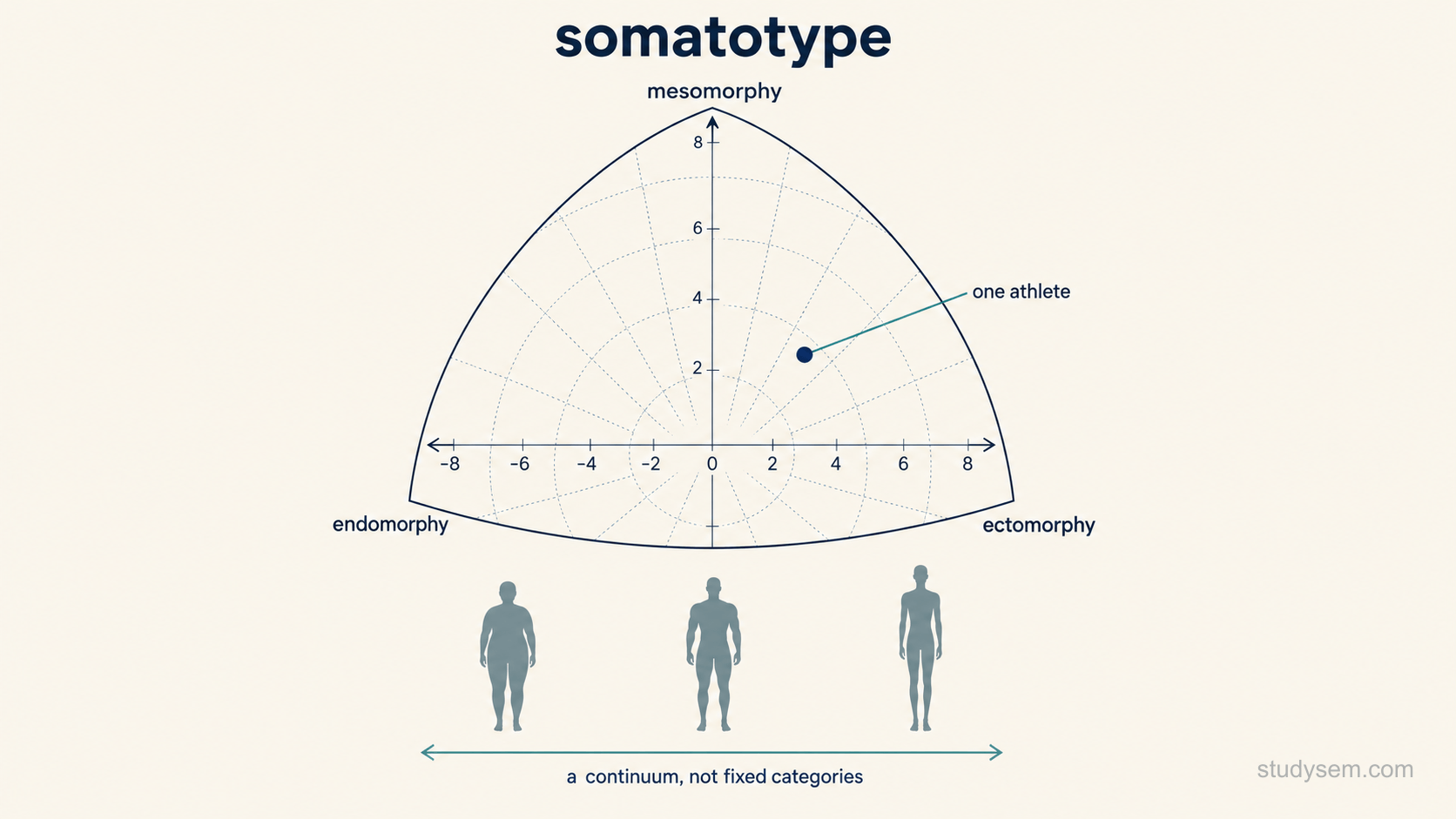

Somatotype is a way of describing overall physique using three components rated together. The widely used Heath-Carter method scores endomorphy, which reflects relative adiposity, mesomorphy, which reflects relative muscularity and skeletal robustness, and ectomorphy, which reflects relative linearity or slenderness. The ratings are continuous and open ended rather than confined to a fixed range, although most athletes fall between one and seven on each component. The three ratings are written as an ordered triad and plotted as a single point on a somatochart, which is a coordinate plot rather than a set of separate boxes.

Somatotype tends to cluster by sport and position. Power and sprint athletes tend toward a dominant mesomorphic component, endurance runners tend toward a more ectomorphic profile, and throwers and some contact-sport forwards often show both mesomorphic and endomorphic components. These are descriptive population tendencies, not prescriptions, and there is wide overlap between individuals. The components are also not fixed for life, since adiposity and muscularity shift with training, nutrition and ageing. Somatotype is best understood as one lens on physique that helps describe a group or monitor change over a career, rather than a rule for who can succeed in a sport.

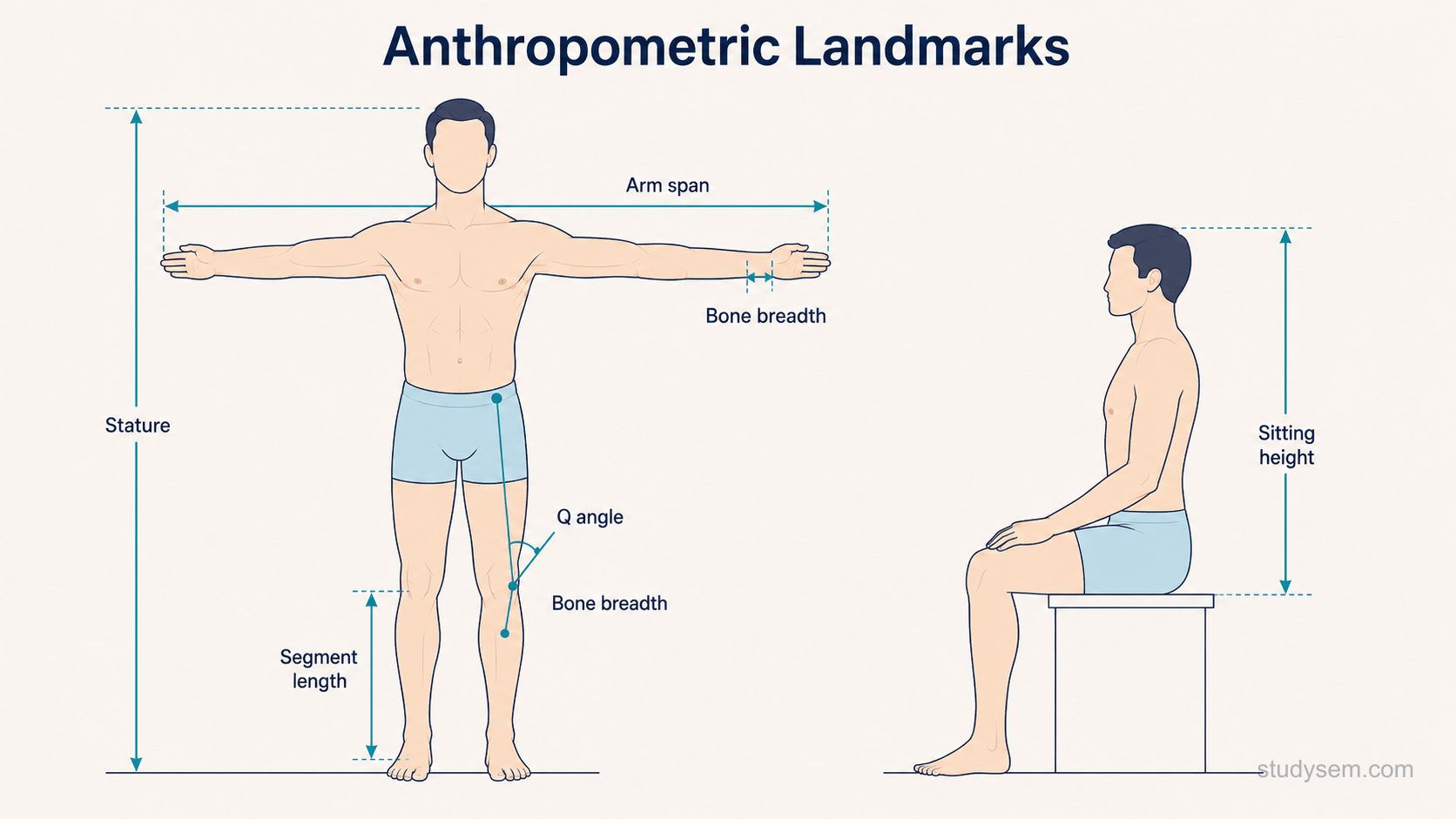

Anthropometry is the standardised measurement of the body. The most widely used framework is the protocol of the International Society for the Advancement of Kinanthropometry (ISAK), which defines exact landmarks and techniques so that measurements are repeatable between assessors and over time. ISAK distinguishes a restricted profile, which covers a core set of basic measurements, from a full profile, which adds a much wider range of lengths, breadths and girths, so not every assessment includes every measurement. A profile may record stature and sitting height, segment and limb lengths, bone breadths such as the biepicondylar breadth of the humerus and femur, girths such as the arm and calf, and skinfold thicknesses at defined sites. Accreditation exists precisely because reliability depends on technique, and accredited anthropometrists must demonstrate a low technical error of measurement.

For a sports clinician the value of anthropometry is in proportion and structure rather than in any single number. Sitting height compared with stature describes trunk to leg proportion, limb lengths describe leverage, and bone breadths give a sense of frame size that does not change with training. Skinfolds are different in kind: they estimate subcutaneous adiposity and contribute to somatotype and body composition assessment, rather than being fixed structural measurements like bone breadths or segment lengths. In an SEM context they are handled with particular care, especially in young athletes, and are never turned into weight or body shape targets.

Proportions shape how an athlete moves. Segment lengths influence reach, the joint torque required at a given position, the moment of inertia of a limb, and therefore the technical solutions available to an athlete. The ratio of leg length to trunk length influences running and rowing technique, and the length of a tendon moment arm, such as at the Achilles, affects the efficiency of energy storage and return in running. None of this makes one build correct; it makes different builds suited to different technical solutions.

Static alignment is the other half of the picture, and it should be interpreted cautiously. The quadriceps angle, or Q angle, describes the line of pull of the extensor mechanism at the knee, but static measurement has variable reliability between examiners and its association with anterior knee pain and injury is inconsistent across studies, so it should not be taught as a dependable explanation for symptoms or as a basis in itself for prescribing orthoses. The same caution applies to genu varum and valgum, foot posture and leg length differences: alignment may contribute to how load is distributed, but the associations with symptoms are usually small and inconsistent. Management should follow the whole clinical and functional assessment, including training load, strength and movement quality, rather than static morphology alone.

Anthropometry and morphology are used for descriptive profiling of squads, for positional and talent characterisation, for monitoring growth in young athletes, and for practical tasks such as equipment and kit fit and ergonomics. In youth sport, serial measurement of stature can identify a period of rapid growth. It is worth noting that maturity offset equations, which predict a date for peak height velocity, carry substantial individual error, particularly in early and late maturers, so observed serial growth velocity is more trustworthy than a single predicted date. Serial growth monitoring can usefully inform discussion of coordination, symptoms and training tolerance during rapid growth, but it should not automatically determine training decisions.

The limits matter as much as the uses. Morphology describes tendencies, not destiny, and it should never be used as a rigid selection filter or to tell an athlete what their body should look like. Anthropometric data are personal and sensitive, so there should be a clear purpose agreed in advance, explicit consent, a defined list of who can access the measurements and how long they are retained, and a genuine right for the athlete to decline repeated physique assessment without consequence. Repeated measurement of skinfolds or body shape in a performance environment can contribute to body image pressure and disordered eating, so in an SEM setting the safe framing is that these measures describe how an athlete is built in order to support health and performance, not that they define a weight or physique to be achieved.

• •The Heath-Carter somatotype has three components in order: endomorphy, mesomorphy and ectomorphy, rated continuously and plotted on a somatochart.
• •Anthropometry follows the International Society for the Advancement of Kinanthropometry (ISAK) protocol, which defines restricted and full profiles.
• •Reliability depends on trained assessors and a low technical error of measurement.
• •Proportion, such as sitting height to stature and segment lengths, affects reach, torque and moment of inertia.
• •Static alignment measures including the Q angle have variable reliability and inconsistent associations with symptoms.
• •Morphology describes tendencies, not destiny, and must not be used to set weight or physique targets, especially in youth.
