Cubital Tunnel Syndrome

Elbow

Overview

Cubital tunnel syndrome is compression or traction neuropathy of the ulnar nerve at the elbow - the second most common upper limb entrapment neuropathy after carpal tunnel syndrome. Peak incidence age 30-60, more common in men. Risk factors include occupations or hobbies involving prolonged elbow flexion, direct pressure on the medial elbow, and repetitive elbow flexion-extension. It commonly coexists with medial epicondylalgia. Many mild cases improve with conservative measures over weeks to months. Established intrinsic wasting (McGowan Grade III) represents axonal loss that does not reliably reverse, so prompt referral when motor signs appear is critical.

Anatomy & Pathophysiology

The ulnar nerve (C8, T1) passes posterior to the medial epicondyle through the cubital tunnel - a fibro-osseous channel formed by the medial epicondyle, the olecranon, and the arcuate ligament (Osborne ligament). This is the most common site of ulnar nerve compression.

The nerve is vulnerable here because it is superficial with minimal soft-tissue protection. Elbow flexion narrows the tunnel, tightens the arcuate ligament, and stretches the nerve - which is why symptoms are worst with the elbow bent. The nerve can sublux or dislocate over the medial epicondyle during flexion in some individuals.

Sites of compression (proximal to distal):

  • Arcade of Struthers
  • Medial intermuscular septum
  • Retroepicondylar groove
  • Cubital tunnel beneath Osborne ligament (the most common site)
  • Between the two heads of flexor carpi ulnaris (second most common)
  • Deep flexor-pronator aponeurosis

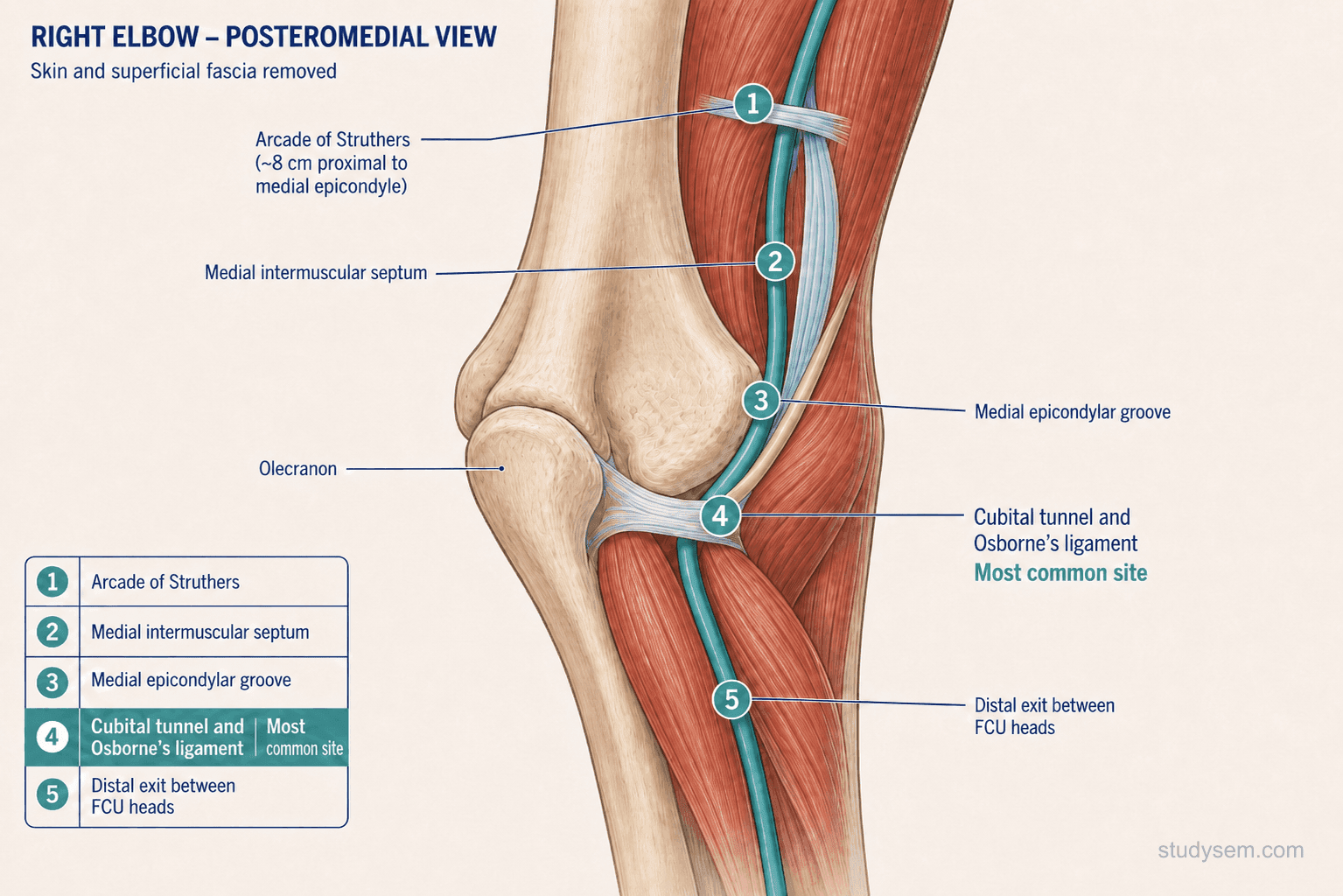

Five potential sites of ulnar nerve compression around the elbow. The cubital tunnel itself is the most common.

Mechanisms: compression (prolonged leaning on the elbow, direct pressure, space-occupying lesion), traction or stretch (prolonged or repetitive elbow flexion), friction (ulnar nerve subluxation over the medial epicondyle), and post-traumatic (previous fracture or cubitus valgus deformity - tardy ulnar nerve palsy).

McGowan grading (modified) drives the management threshold:

  • Grade I: intermittent paraesthesia, no weakness, no wasting
  • Grade II: intermittent or persistent paraesthesia with measurable weakness but no wasting
  • Grade III: persistent paraesthesia with intrinsic muscle wasting

Risk factors: occupational elbow flexion or pressure, previous elbow fracture or surgery, elbow OA, diabetes (double crush), rheumatoid arthritis, obesity, smoking.

Clinical Pearl

Elbow flexion narrows the cubital tunnel and stretches the nerve, so symptoms are worst with the elbow bent (sleeping, phone use, driving). Most cases compress beneath Osborne ligament or between the two heads of FCU. Tardy ulnar nerve palsy describes delayed neuropathy years after a childhood elbow fracture.
